The sliding rack designed to utilize the full depth of the double floor

Series U

Transform a low, deep and hard-to-access space into a smooth, stable and fully usable drawer for everyday use.
A solution specifically designed for double floors and pass-through garages, without modifying the vehicle.

Full access to the double floor

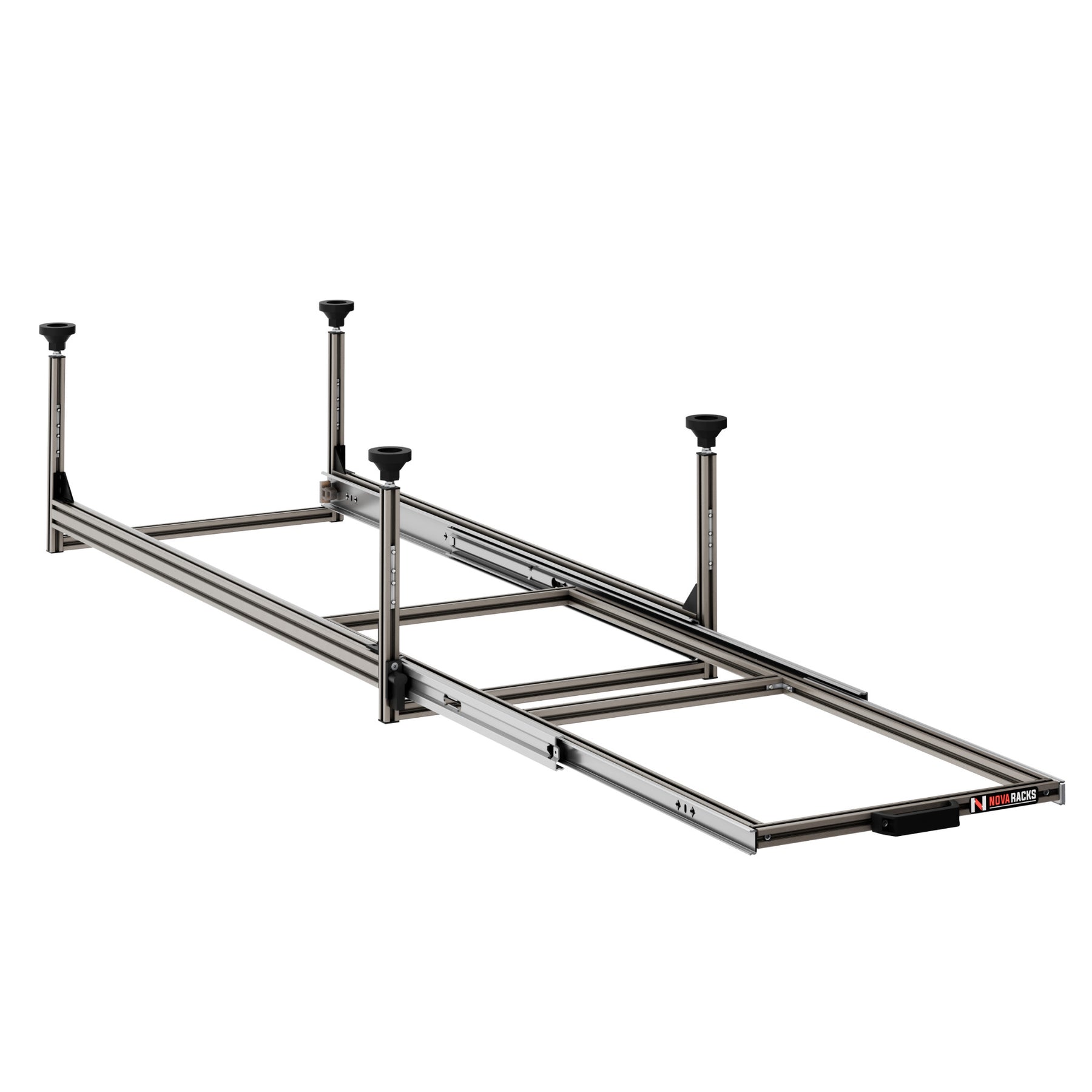

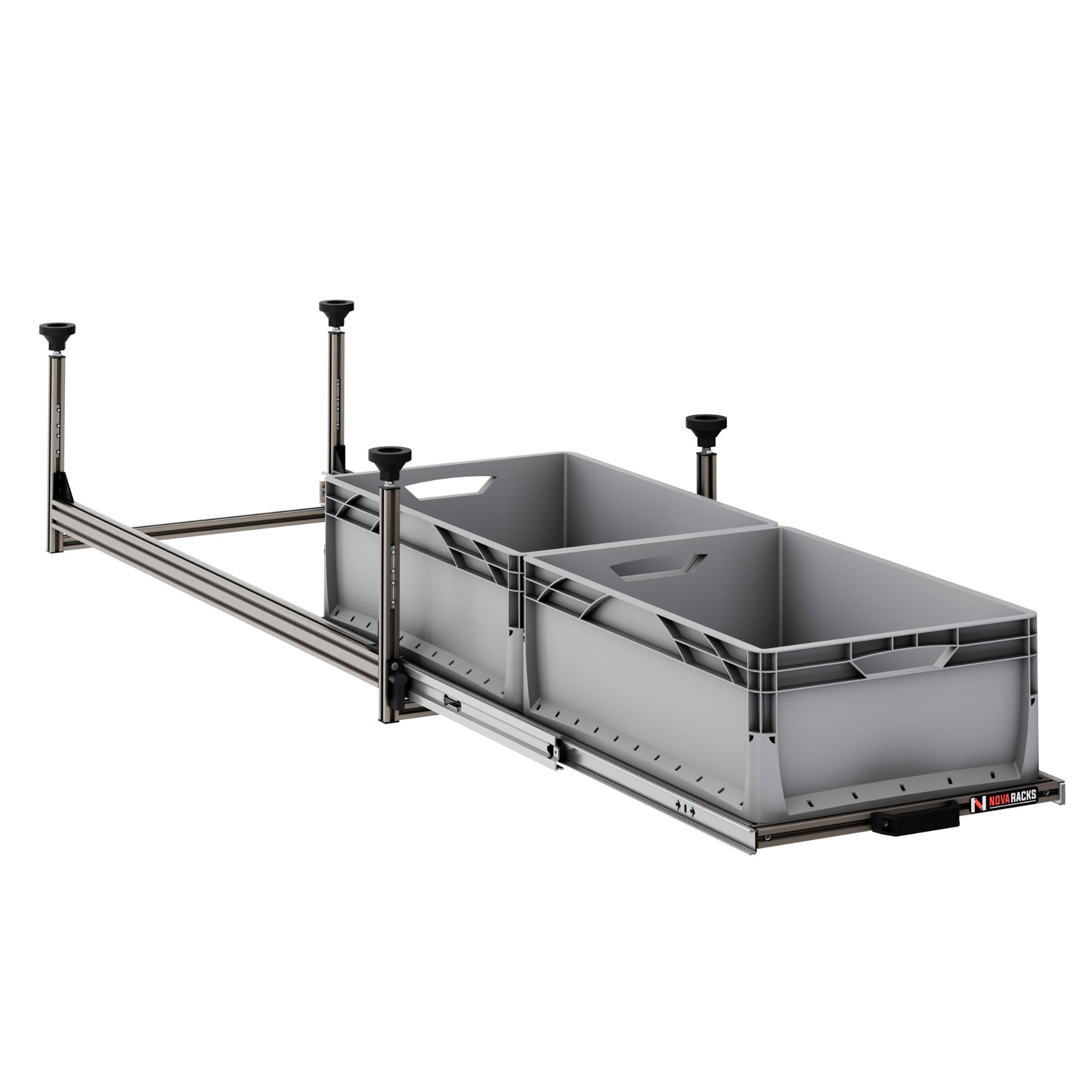

The Series U transforms a low and deep space into a smooth full-extension sliding drawer, allowing easy access to the entire load without bending or twisting.

Pre-assembled, ultra-fast installation

As with the Series M, the vertical uprights are divided into two parts, allowing the entire structure to be assembled outside the vehicle, in optimal conditions.
Sub-assemblies arrive pre-assembled, with hardware already in place, for a fast, clear installation without unnecessary steps.

Premium design, drill-free

The Series U is manufactured from high-quality aluminum profiles, with a refined finish and precise adjustments.
The compression fixing, without drilling, ensures a clean, reversible and vehicle-friendly installation, while providing excellent stability while driving.

Series U

Double floors and pass-through garages offer significant storage volume, but are often difficult to use efficiently on a daily basis.

The Series U was specifically designed to address this issue : making deep and low areas accessible, while respecting the vehicle structure and its internal technical constraints.

By transforming a usually restrictive space into a stable and smooth drawer, the Series U allows more rational load organization, with quick and comfortable access to equipment, even in complex configurations.

The Series U is configured according to the actual available space in your double floor.

Choose the width adapted to your passage area, then the depth corresponding to the usable length. The available options automatically adjust to ensure a coherent and vehicle-compatible configuration.

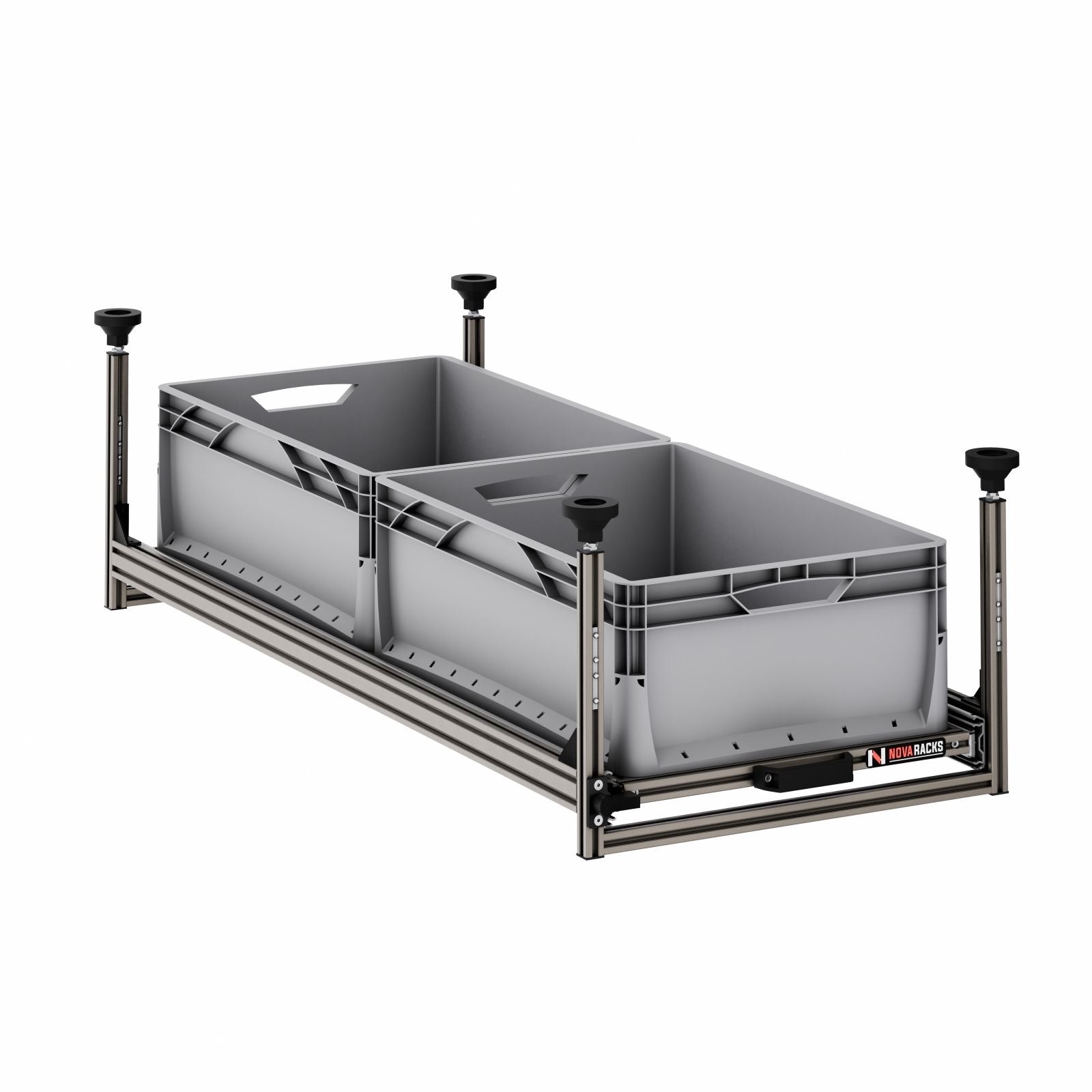

Series U – Sliding Rack – Double Floor
1200 mm (Ext. 1205 mm)

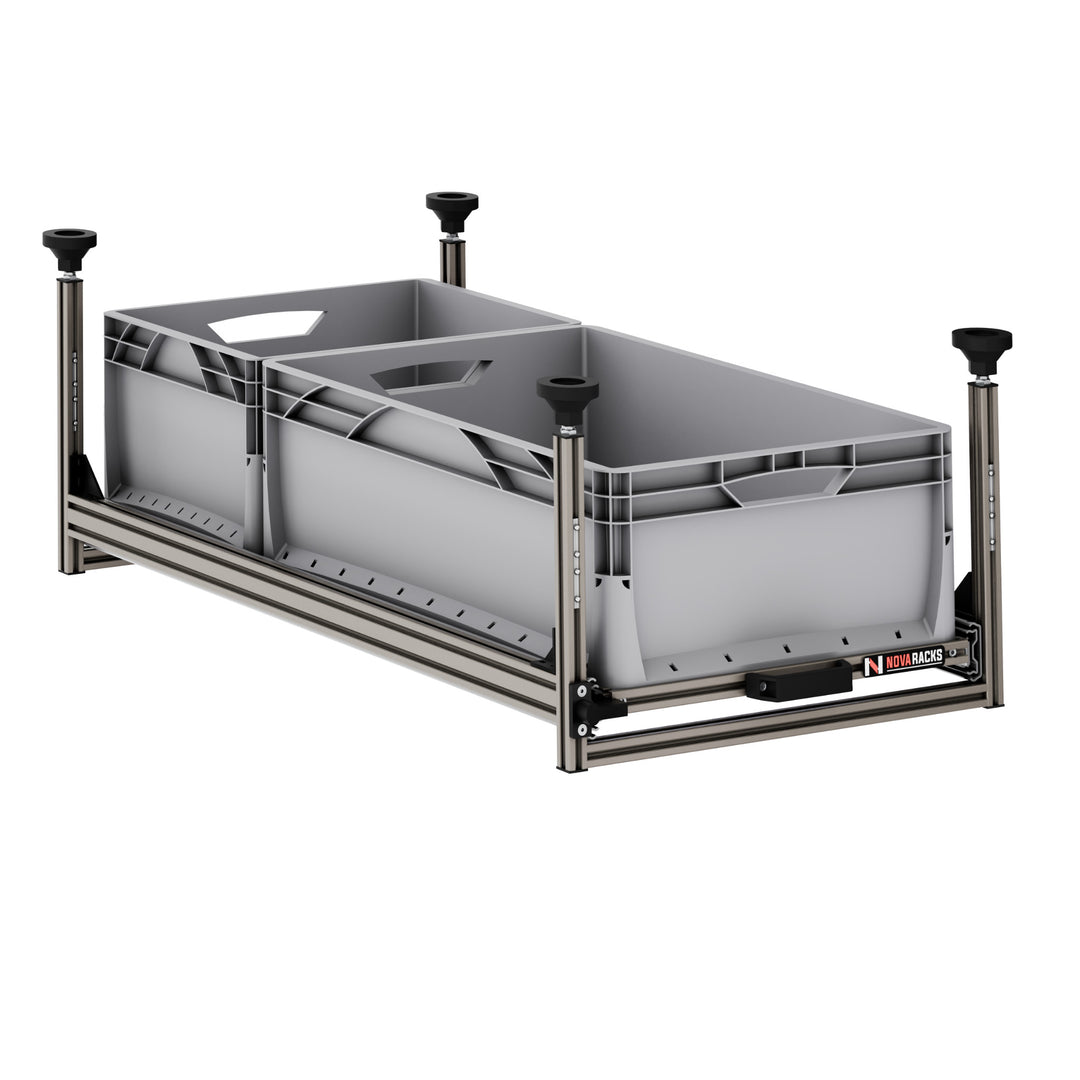

900 mm (Ext. 905 mm)
1200 mm (Ext. 1205 mm)

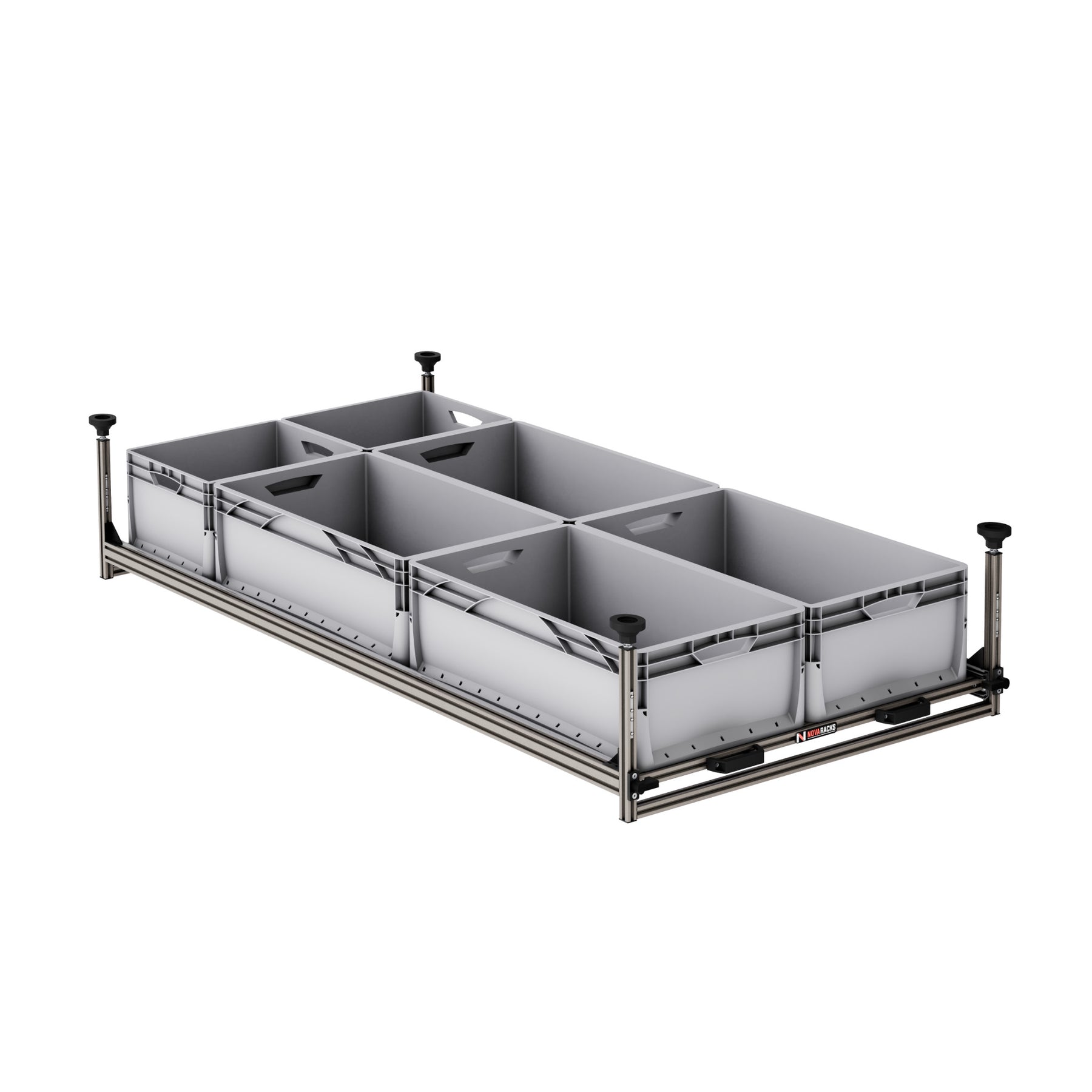

1500 mm (Ext. 1505 mm)
Series U – Sliding Rack – Double Floor
Series U – Sliding Rack – Double Floor
Series U – Sliding Rack – Double Floor
Series U – Sliding Rack – Double Floor
Series U – Sliding Rack – Double Floor
Series U – Sliding Rack – Double Floor
Series U – Sliding Rack – Double Floor
Front view Ready
Set your dimensions on the right — the visual updates here.
1000 mm
Door top
400 mm
Remaining clearance --
Enter your cargo heights to calculate the remaining space.
Series U – Sliding Rack – Double Floor
1200 mm (Ext. 1205 mm)
900 mm (Ext. 905 mm)
1200 mm (Ext. 1205 mm)
1500 mm (Ext. 1505 mm)
Series U – Sliding Rack – Double Floor
Series U – Sliding Rack – Double Floor
Series U – Sliding Rack – Double Floor
Series U – Sliding Rack – Double Floor
Series U – Sliding Rack – Double Floor
Series U – Sliding Rack – Double Floor
Series U – Sliding Rack – Double Floor

Series U – Sliding Rack – Double Floor

€250,00 incl. VAT
From €29
Ships in 2–3 days · DPD
Delivery zones
Zone 1
DE · AT · BE · FR · GR
IT · NL · RO · CZ		 29 €
Zone 2
HR · DK · ES · HU
LU · PL · SK · SI		 39 €
Zone 3
EE · FI · LV · LT
PT · SE		 49 €
Secure delivery · European DPD network
Rack dimensions
Width
Length
Levels
Configure my rack Required for production
Your storage measurements — required for production
Front height
Measure from the floor to the ceiling of your storage compartment at the lowest point near the front side of the opening. Provide the raw measurement — subtract nothing.
 mm
Rear height
Measure from the floor to the ceiling of your storage compartment at the lowest point near the rear side of the opening. Provide the raw measurement — subtract nothing.
 mm
Box simulation — indicative
This simulation shows exactly which boxes can enter and exit your storage compartment smoothly. By entering your door dimensions and box heights, the configurator calculates to the millimeter what can pass through the opening.

The inter-level gap represents the free height between the top of your box and the underside of the upper level — useful if some objects stick out of your boxes (bottles, rods, equipment...). We recommend 20 mm as a standard value, but the choice is yours.

The levels are adjustable to the millimeter — you can fine-tune them during installation.
This simulation shows exactly which boxes can enter and exit your storage compartment smoothly. By entering your door dimensions and box heights, the configurator calculates to the millimeter what can pass through the opening.

The inter-level gap represents the free height between the top of your box and the underside of the upper level — useful if some objects stick out of your boxes (bottles, rods, equipment...). We recommend 20 mm as a standard value, but the choice is yours.

The levels are adjustable to the millimeter — you can fine-tune them during installation.
Door bottom
Distance from the floor to the bottom of the door frame. If your opening is lower, the rack still keeps a non-compressible structural base of at least 35 mm.
 mm
Door top
Distance from the top of the door frame to the ceiling of the compartment. On the U Series, this value can go down to 0 mm if the opening allows it.
 mm
Inter-level gap
Free space between the top of your box and the underside of the upper level. Useful for items that slightly protrude from your boxes (bottles, rods...). We recommend 20 mm as a standard value, but the choice is yours.
 mm
Single sliding drawer — no inter-level gaps on the U Series
Options
Heavy-duty slides
220 kg per level
Net weight
7.9 kg
Actual size
387 × 805 mm

Pre-assembled system for simple and fast installation.

Main sub-assemblies are delivered already assembled, with pre-installed hardware inside the profiles.
As with the Series M, vertical uprights are divided into two parts, allowing the structure to be assembled outside the vehicle, in optimal conditions.

Fixation is done by compression, without drilling or modifying the vehicle, ensuring a clean, reversible installation that respects double-floor constraints.

⏱ Estimated installation time:
15 to 30 minutes

🎥 Installation support:
Assembly videos accessible via QR code.

Designed for double floors and low-height pass-through storage areas,
when access is limited by depth and available height.

Compatible with:
• Motorhome double floors
• Pass-through storage areas with usable floor and ceiling
• Configurations requiring drill-free installation

Good to know

Series U is ideal when floor drilling must be avoided,
especially in the presence of tanks, cables or technical ducts.

👉 For rear garages requiring floor fixing: see Series V / VS / VT
👉 For side garages with fixed height: see Series M

Kit contents – Series U

Pre-assembled modules

  • Pre-assembled structural modules, with slides already mounted and aligned

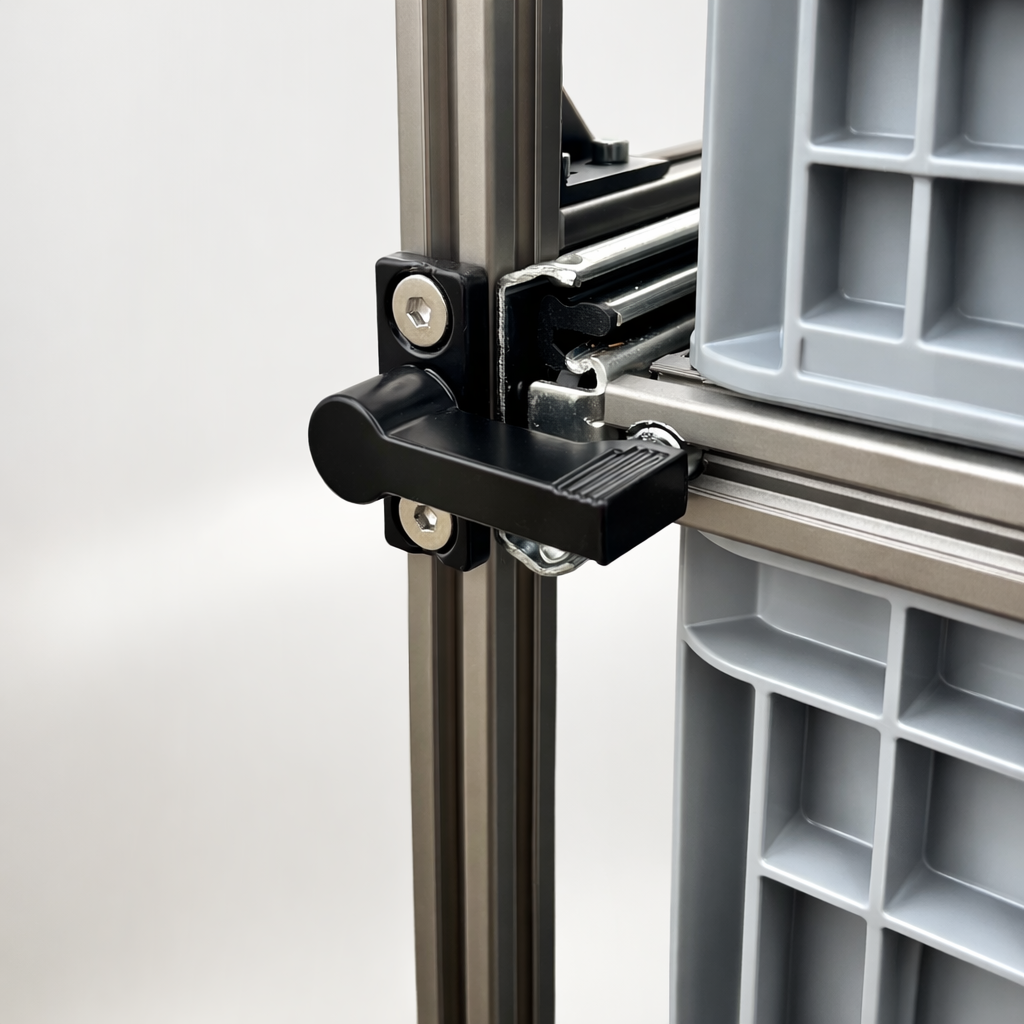

  • Integrated manual locking system (open / closed positions)
  • Height adjustment blocks to facilitate installation and ensure precise leveling

Fixings & hardware

  • Compression fixing, no drilling required
  • Pre-installed hardware on all elements

Assembly instructions

  • Access to video assembly tutorial
  • QR code linking to online instructions

Not included

  • Storage bins (Euroboxes or others)
  • Assembly tools
